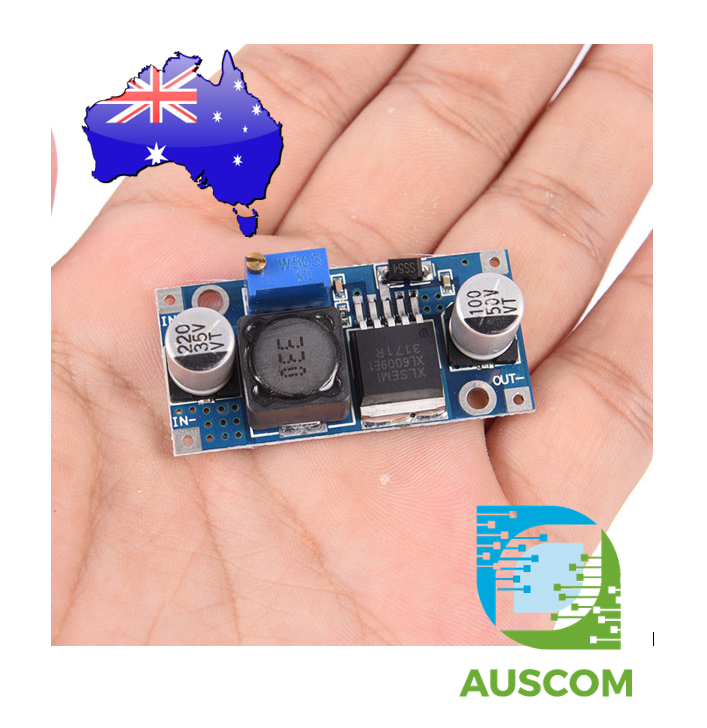

Description �� XL6009 DC-DC Adjustable Step-Up (Boost) Converter Module – 4A, 3V–32V In, 5V–35V Out The XL6009 DC-DC Boost Converter is a high-performance, adjustable power supply module designed to step up lower voltages into stable, efficient higher outputs. Ideal for Arduino, robotics, LED lighting, battery charging, and DIY electronics projects, this module is the ultimate upgrade to the older LM2577 design. ✅ Key Features Wide Input Range: 3V – 32V (optimal 5V – 32V) Adjustable Output Voltage: 5V – 35V High Efficiency: Up to 94% with 4A peak output current Next-Gen Performance: XL6009E1 chip with 400KHz switching frequency Compact & Reliable: 43 × 21 × 14 mm, easy to integrate Superior to LM2577: More efficient, smaller, and more stable �� Sample Test Results 3V → 12V @ 0.4A (4.8W) 5V → 12V @ 0.8A (9.6W) 7.4V → 12V @ 1.5A (18W) 12V → 15V @ 2A (30W) 12V → 16V @ 2A (32W) 12V → 18V @ 1.6A (28.8W) 12V → 19V @ 1.5A (28.5W) 12V → 24V @ 1A (24W) �� Technical Specifications Model: DSN6009 (XL6009E1 Core) Module Type: Non-isolated Boost Converter Rectification: Non-synchronous Input Voltage: 3V – 32V Output Voltage: 5V – 35V Max Input Current: 4A No-Load Current: <18mA (5V→8V) Efficiency: Up to 94% Switching Frequency: 400KHz Output Ripple: ~50mV Load Regulation: ±0.5% Voltage Regulation: ±0.5% Operating Temperature: -40°C to 85°C Dimensions: 43mm × 21mm × 14mm �� Package Includes 1 × XL6009 DC-DC Adjustable Step-Up Power Converter Module ⭐ Why Buy This Module? Trusted for Arduino & DIY electronics Proven upgrade over older LM2577 modules Perfect for RC projects, robotics, solar charging, LED strips, and more Fast local shipping hassle-free returns ⚡ Upgrade your projects with reliable, efficient voltage boosting – order your XL6009 today!
